fuel pump relay

Postby Rockwoodhouse » Tue Jun 26, 2018 1:56 pm

I have a 1996 4.0 Celebration coupe. It won't start. It seems as though the fuel pump is getting no power to it (on cranking). But I can't find where the fuel pump relay is. Any ideas? Thanks
davidr

Moderator
Posts:2464
Joined:Thu Sep 08, 2005 8:31 pm
Location:Salisbury, Wilts

Re: fuel pump relay

Postby davidr » Tue Jun 26, 2018 10:09 pm

It's tucked away to the right of the battery box behind a cover.
Here's a picture of the relevant page of the repair manual.
The attachment image.jpeg is no longer available

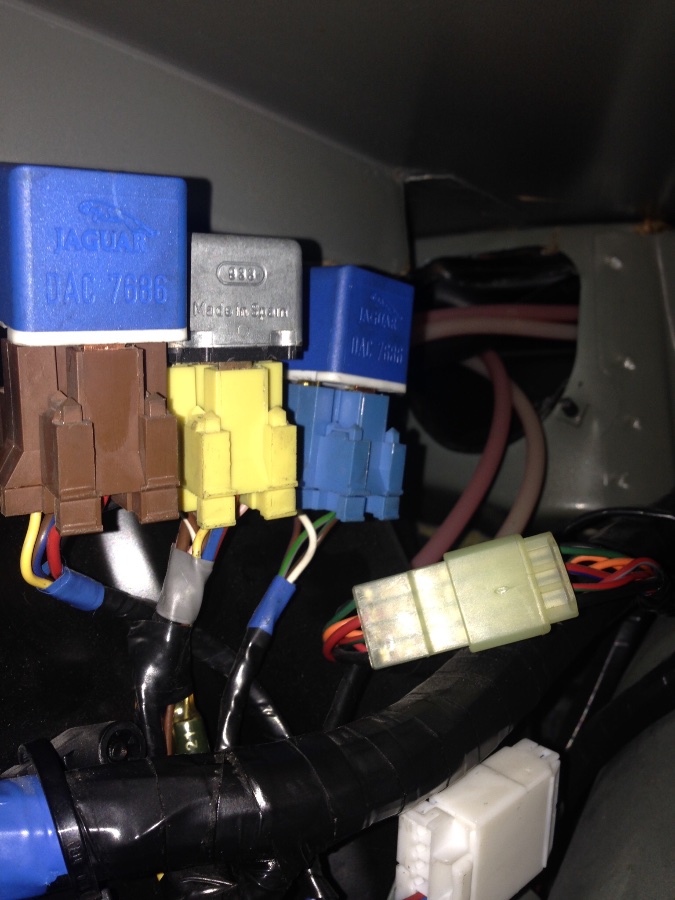

And here are the three relays on my own car. It's the one nearest the back of the car you're looking for
XJS FORUM COORDINATOR
1996 XJS Celebration Convertible 2001 XKR Convertible

Previously enjoyed!
1989 XJ-S V12 Coupe. 2006 XJ TDVi Sovereign. 1995 XJ6 3.2. 2013 XF 2.2d. 2009 X Type 2.0d Sovereign estate
davidr

Moderator
Posts:2464
Joined:Thu Sep 08, 2005 8:31 pm
Location:Salisbury, Wilts

Re: fuel pump relay

Postby davidr » Tue Jun 26, 2018 10:14 pm

Sorry. The pictures have got mixed up somehow.

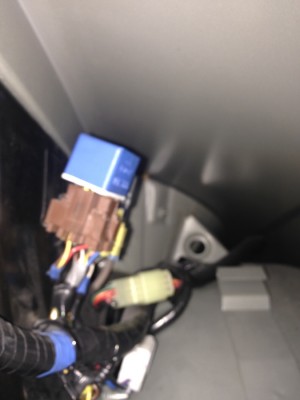

I'll try again with the picture of them on my car
