- 1964 Jaguar E-Type SI FHC
Wiring Diagrams

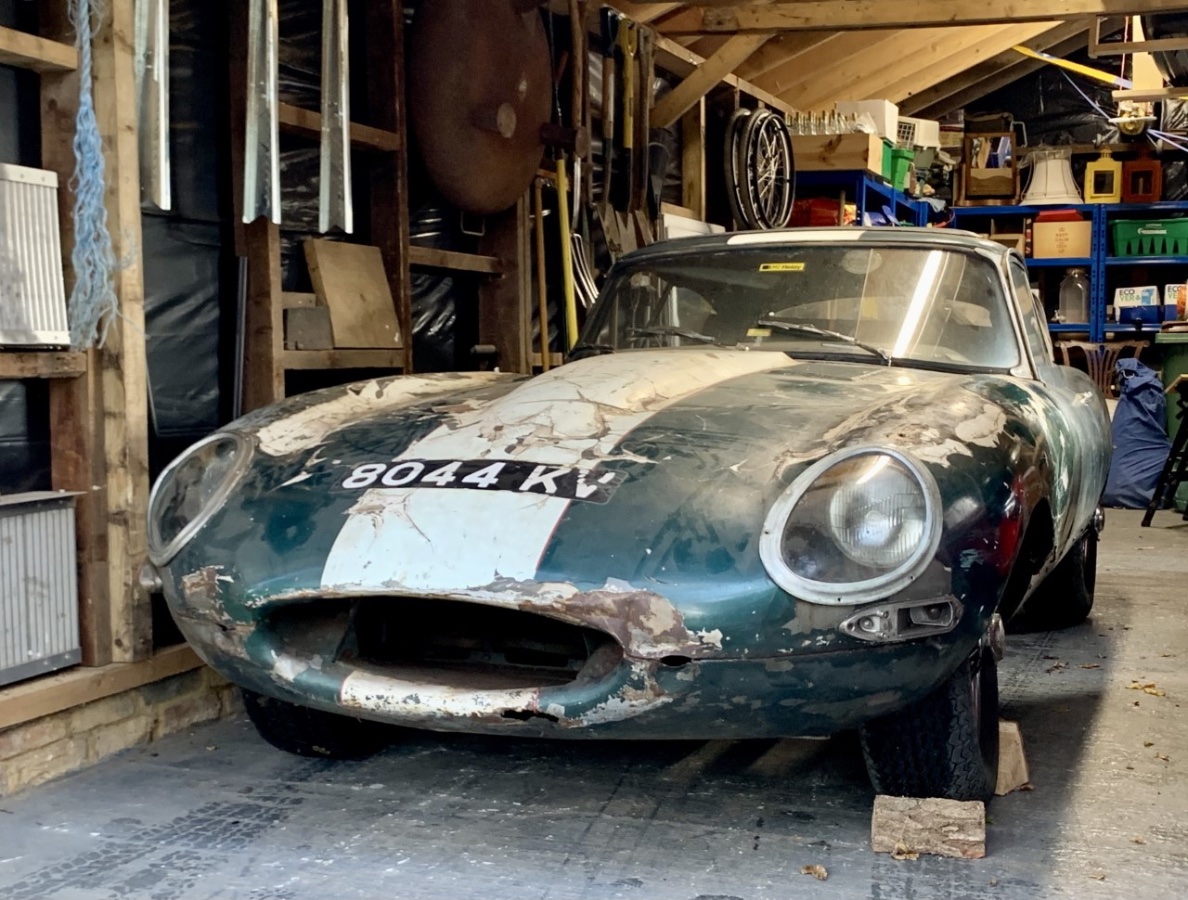

I have a 1964 Jaguar E-Type SI FHC project that needs completely re-wiring. I have a new loom sitting in a box (I don't have anyone to fit it but that's another matter) but I cannot find, for love nor money, a wiring diagram. What do I do? Can anybody help?
Re: Wiring Diagrams
Hello Ejbs,
the workshop manual has a wiring diagram, and if like the Mk2 shows how the loom runs in the body.
Another useful thing is to Google Lucas wiring colour markings which lists all the colours and trace colours for the applications. e.g. Blue\white trace is feed to the headlight main beam.
Alec
the workshop manual has a wiring diagram, and if like the Mk2 shows how the loom runs in the body.
Another useful thing is to Google Lucas wiring colour markings which lists all the colours and trace colours for the applications. e.g. Blue\white trace is feed to the headlight main beam.
Alec
