so i bought a full set of complete quads as Jaguar supplied, these were not cheap , but came with everything needed to fully replace the full setup on both sides , though the lamps them selves are not handed, or the ' stainless beauty trims, the rear frames are,
not knowing the full condition , until i took things apart , as she is a driver and i don't want to take her off the road for any period of time unless absolutely necessary , it was also important to get the correct ' square edge ' lamps by Lucas, others are available, but the profile is different, though would work perfectly , but not what i wanted, so originals all the way where i can...

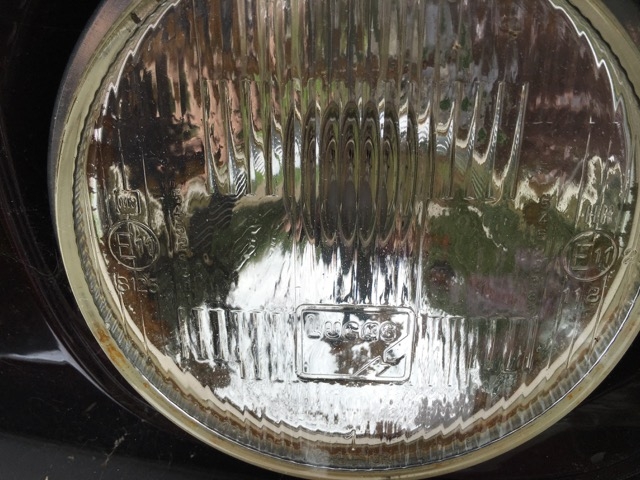

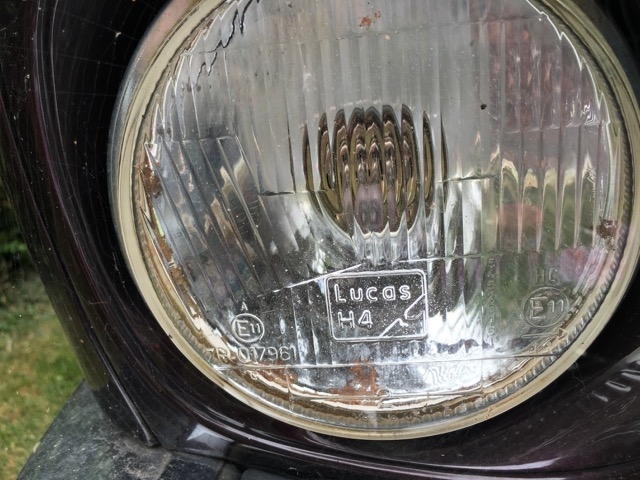

so the first thing is the condition of the lamps, as can be seen , nasty and rusty...
IMG_1515 by MyPix on Talk Photography
IMG_1517 by MyPix on Talk Photography
IMG_1518 by MyPix on Talk Photography

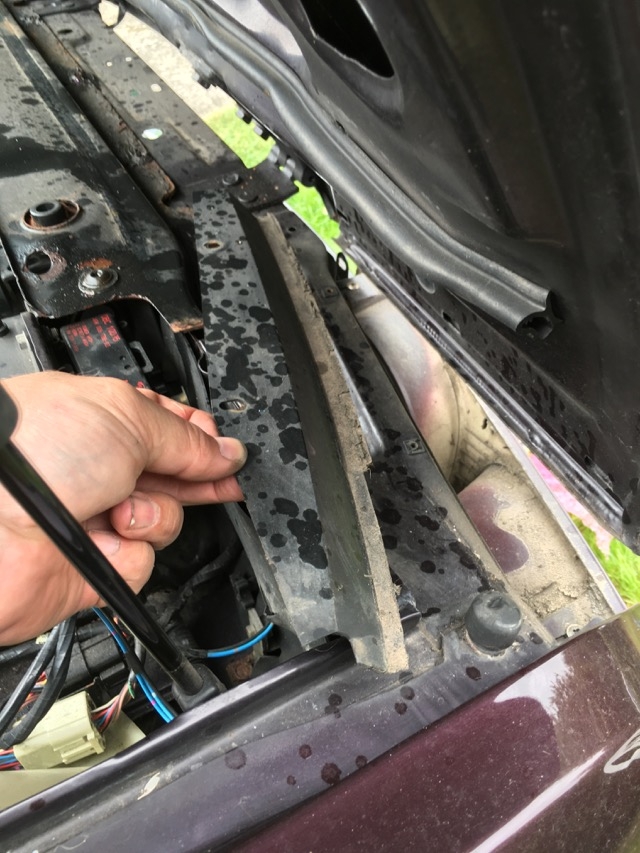

first ( for the quads ) is to take off the top water shed trim plate
IMG_1520 by MyPix on Talk Photography
then the painted quad surround needs to come off, this is held in by 4 small screws , one of which is behind the grille, so that comes out as well , one of the screws is accessed from under the bumper, the screw can be seen if the side reflector is prised out first

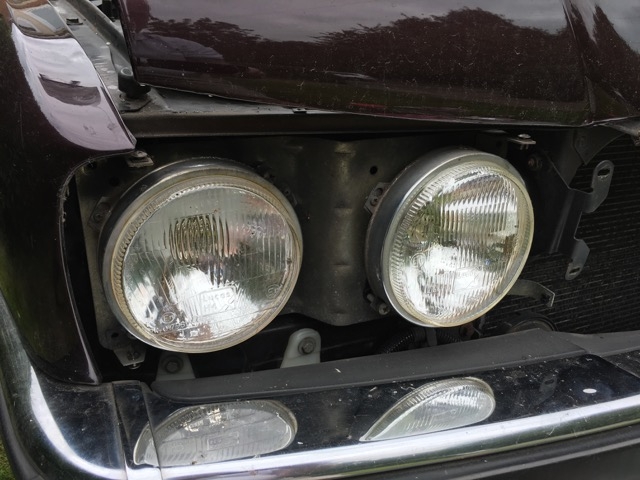

the headlight are then as below
IMG_1522 by MyPix on Talk Photography
the lamps are held in by stainless beauty rings with three small screws holding the ' keyhole ' fixings, slacken off the screws and twist to remove the bezel , the lamp will drop forward on its wiring ready to be disconnected
IMG_1524 by MyPix on Talk Photography

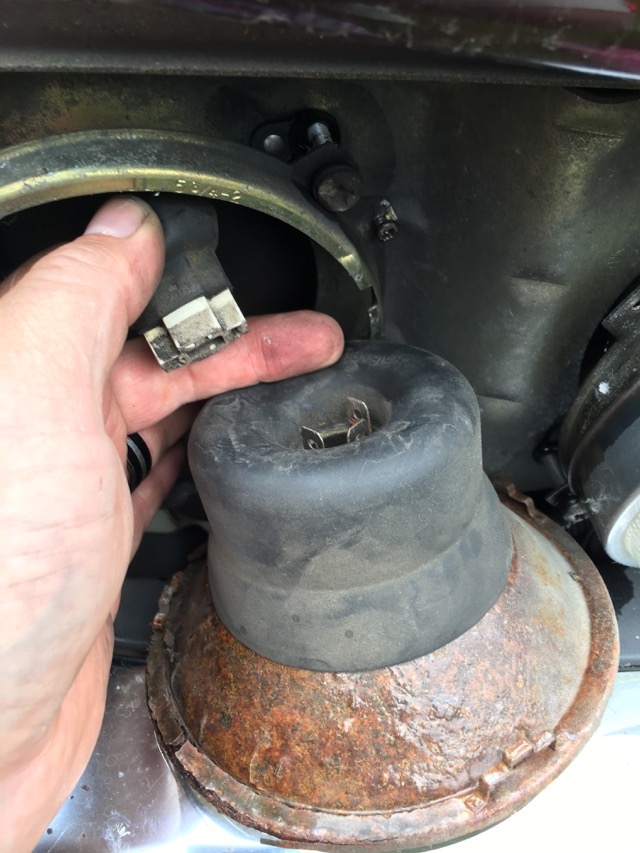

as can be seen in this picture, the back of the headlight bowls is beyond repair and very rusty,
IMG_1526 by MyPix on Talk Photography

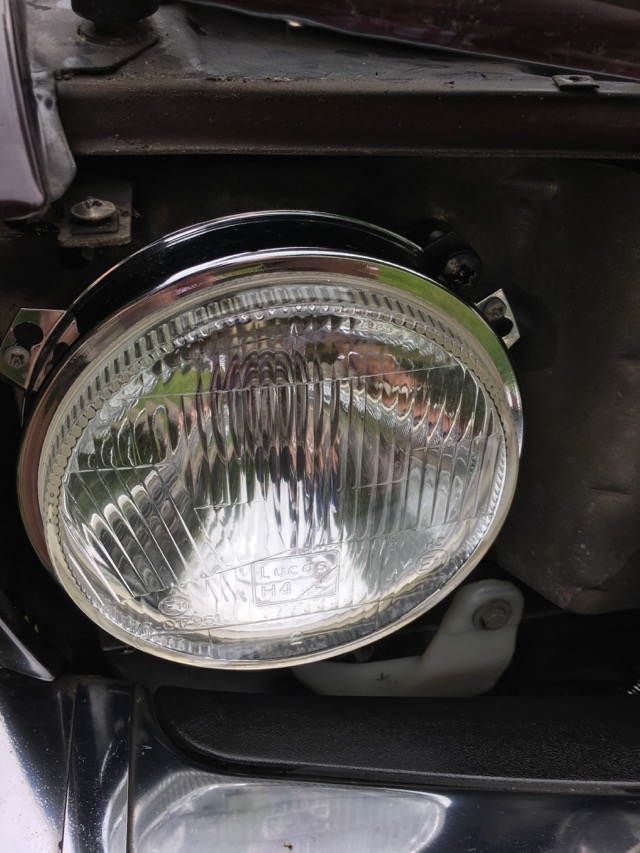

taking the new headlamps and new beauty rings, and with new ' keyhole ' fixing screws installed, i plugged in the new lamp units and fitted to the existing frame , which were in excellent condition , so no need for any extra work
IMG_1530 by MyPix on Talk Photography
as these are for a '94 car, there is no sidelight in the one lamp , as thats next to the indicator on the bumper
IMG_1532 by MyPix on Talk Photography

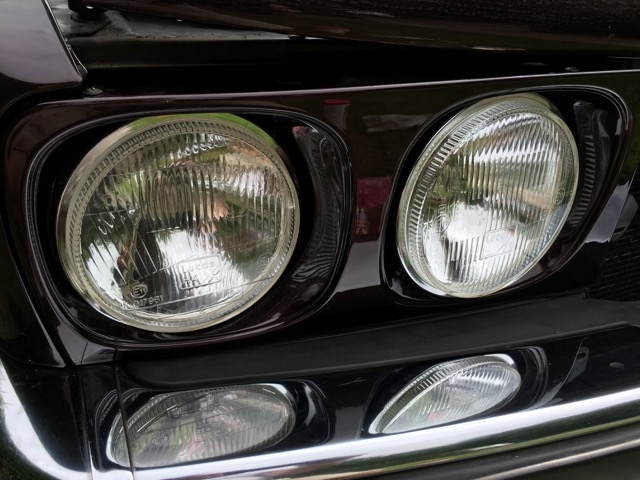

then after a good cleanup , and lubricating all exposed threads etc, i replaces the quad surround cover
IMG_1534 by MyPix on Talk Photography
IMG_1513 by MyPix on Talk Photography
i have a new grille surround winging its way to me in the post, as mine was slightly dented, so no point refitting, as it ' should' be here tomorrow ?

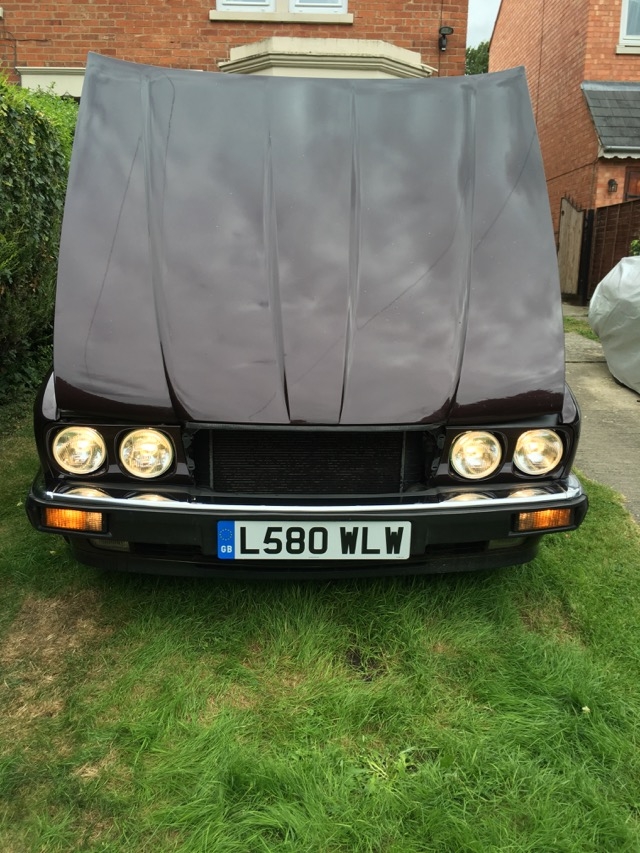

so all lights on and tested, with new sidelight lamps fitted and the indicator/sidelight lenses cleaned , forgot to turn on the front fogs though , lol
IMG_1544 by MyPix on Talk Photography

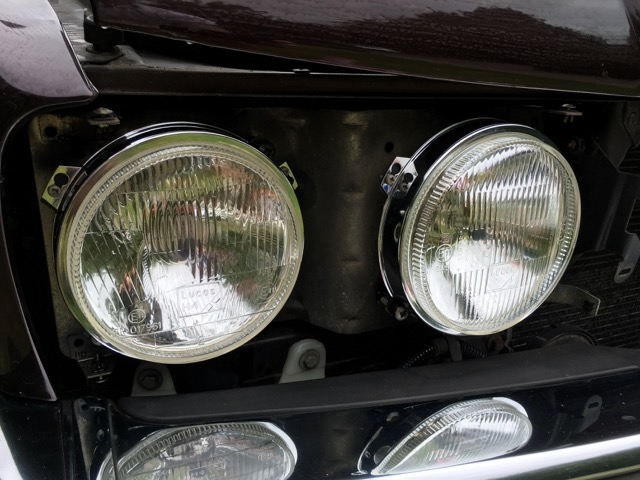

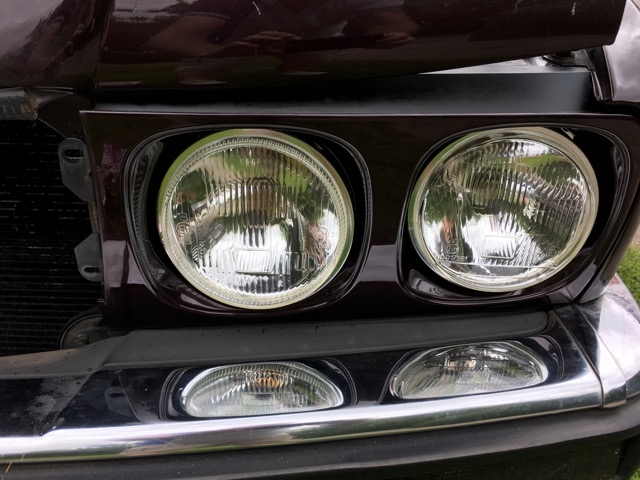

its always pleasing to see a car with fresh headlights, surprising how much it lifts the look of the car
on to the next project
BB
