Hi all, I just got caught with the same issue (should have checked the forum first). The confusing thing is the parts suppliers show the top side of the filter (the side that plugs into the gearbox) which is identical for both parts. It is the underside that is different as shown in the photos above...

A quick update on progress with this item and the final outcome. I took the washers to a local hydralic specialist who confirmed they are 1/2" BSP which I duly bought and took home. On closer inspection with a caliper the dimesions where slightly different so I started looking round on the Internet ...

Thank you Jim. I will see if I can track down a local supplier.
Kind regards
Mike

Hi, Just wondered if anyone has replaced the bonded seal washers that connect the oil cooler pipes to the XJS 4L Auto Gear Box? They are no longer available from Jaguar or the usual after market providers. These pipes connect from the gear box to the main radiator at the right hand side. The washers...

Hi, Yes, the Avdel rivet tool is a really heavy duty pop rivet gun in essence. It's about the size of a large pair of bolt cutters with handles that extend to give extra leverage. The Avdel rivets are steel rather than aluminium so they take a pit of pulling. The challenge is getting the vehicle hig...

Hi Nick, Thank you for your reply. Good luck with your replacement work. Unfortunately, my floor had rusted away from front to back on both sides and it turned into a major job. The rear jacking points on both sides had rusted away too and also the bump stop mounts in the rear wheel arches. All sort...

In case you come across the same issue on your restoration I have been able to find the correct rivets from a company called Zygology. Their contact details are sales@zygology.com or telephone 0808 123 1221. The rivets are - Avdel Monobolt steel rivets 6.4mm (1/4") diameter. The correct part number ...

Now with photo attached...

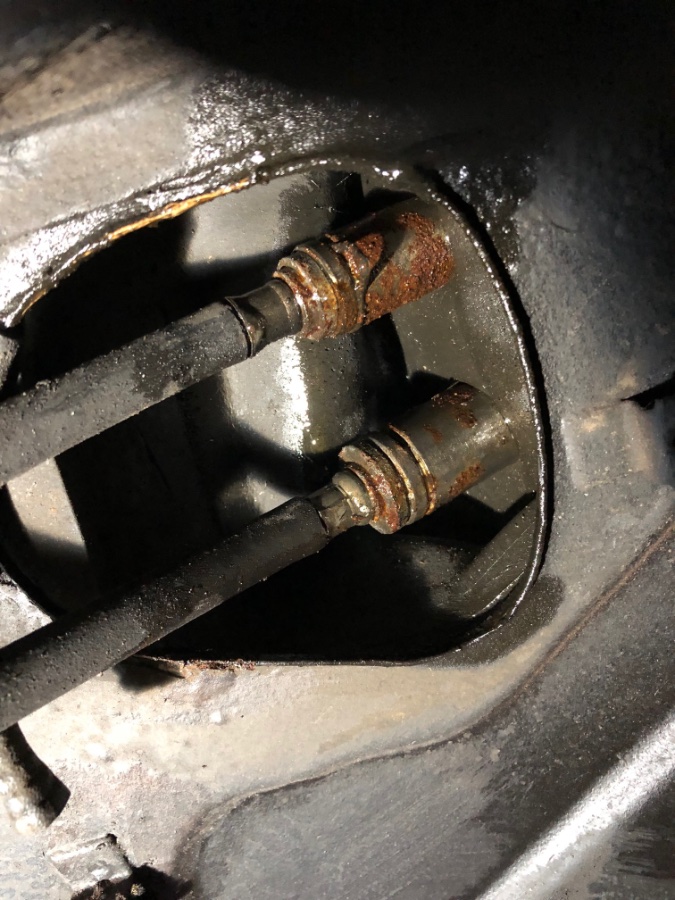

Hi, Has anyone got experience of replacing the fuel lines on a Facelift XJS? The lines on mine are still working but are corroded so I want to replace them as part of the restoration project. The lines are not available for purchase so I am looking to get new lines made up. The issue is the tank con...

Hi Glenn, Yes, it's the overflow pipe for the Atmospheric Catchment Tank which is located behind the wheel arch towards the drivers feet. If you look on your photo you can see a box shaped panel just above the sill end plate. This is the access panel to get to the tank and is held on with 5 pozidriv...

IMG_1790 Top side of Drivers Footwell.jpg IMG_1781 Underside of Drivers Footwell.jpg Hi, I just wondered if anyone knows the purpose of the under floor mounting points in the front footwells of a Facelift XJS 4L Automatic Coupe? At first I thought they may have been for a pedal box for manual cars ...

Hi, Has anyone got experience of replacing the rear radius arm mounting cups on an XJS? In particular how to obtain replacement parts for the two mounting rivets. On mine the actual cup is ok but the chassis has gone underneath so I want to remove it to cary out the repair. The fixings are Avdel Riv...

Hi Al, Thank you for your reply. That makes sense. I couldn't understand why you would need so many drains for something like rain water getting in or any fluid leaks. Good point on originality. If the plugs are OK underneath I will leave them in place and make sure they are well undersealed. If the...

Hi, Does anyone know if the metal plugs found in the XJS floor pan have a purpose other than causing localised corrosion? In the process of restoring my car I am finding the plugs look ok inside the car but underneath they have allowed water to get into the under-seal and caused localised rusting. I...

Hi Paul, Thank you for your feedback on this. Sound advice. I think I will leave the gaps open when I replace the floor and make sure the area is well rust proofed. As you say, its better to let the water get out again if it once gets in. There were holes in the closing plate at the rear wheel arch ...
